📜  打印从源点到矩阵所有 4 个角的所有路径

📅  最后修改于: 2022-05-13 01:56:04.898000             🧑  作者: Mango

打印从源点到矩阵所有 4 个角的所有路径

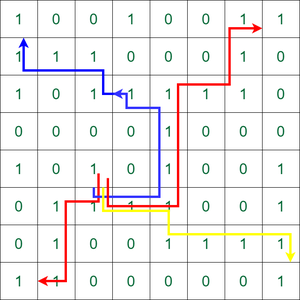

给定一个大小为M*N的二维数组arr[][] ,包含10 ,其中1表示可以访问该单元格,而0表示该单元格被阻塞。有一个源点(x, y) ,任务是打印从给定源到数组(0, 0), (0, N – 1), (M – 1)四个角中任意一个的所有路径, 0)(M – 1, N – 1)

例子:

方法:这个想法是使用递归和回溯,通过考虑从源到目的地的每条可能路径来查找所有可能的路径,如果它是有效路径,则将其存储。请按照以下步骤解决问题:

  • 初始化一个字符串向量ans[]来存储答案。
  • 递归调用该函数以检查 4 个方向中的每一个,同时推动当前方向并使单元格被访问。
  • 如果指针越过边界或者要访问的单元格不是有效单元格,即其值为0 ,则返回。
  • 否则,存储当前单元格并到达任何一端,然后将其作为结果之一。
  • 执行上述步骤后,打印数组ans[]

下面是上述方法的实现。

C++
// C++ program for the above approach
#include
using namespace std;

struct direction {
    int x, y;
    char c;
};

// Function to check if we reached on
// of the entry/exit (corner) point.
bool isCorner(int i, int j, int M, int N)
{
    if ((i == 0 && j == 0)
        || (i == 0 && j == N - 1)
        || (i == M - 1 && j == N - 1)
        || (i == M - 1 && j == 0))
        return true;

    return false;
}

// Function to check if the index is
// within the matrix boundary.
bool isValid(int i, int j, int M, int N)
{
    if (i < 0 || i >= M || j < 0 || j >= N)
        return false;
    return true;
}

// Recursive helper function
void solve(int i, int j, int M, int N,
           direction dir[],
           vector >& maze,
           string& t, vector& ans)
{

    // If any corner is reached push the
    // string t into ans and return
    if (isCorner(i, j, M, N)) {
        ans.push_back(t);
        return;
    }

    // For all the four directions
    for (int k = 0; k < 4; k++) {

        // The new ith index
        int x = i + dir[k].x;

        // The new jth index
        int y = j + dir[k].y;

        // The direction R/L/U/D
        char c = dir[k].c;

        // If the new cell is within the
        // matrix boundary and it is not
        // previously visited in same path
        if (isValid(x, y, M, N)
            && maze[x][y] == 1) {

            // Mark the new cell as visited
            maze[x][y] = 0;

            // Store the direction
            t.push_back(c);

            // Recur
            solve(x, y, M, N, dir,
                  maze, t, ans);

            // Backtrack to explore
            // other paths
            t.pop_back();
            maze[x][y] = 1;
        }
    }
    return;
}

// Function to find all possible paths
vector possiblePaths(
    vector src, vector >& maze)
{
    // Create a direction  array for all
    // the four directions
    direction dir[4] = { { -1, 0, 'U' },
                         { 0, 1, 'R' },
                         { 1, 0, 'D' },
                         { 0, -1, 'L' } };

    // Stores the result
    string temp;
    vector ans;

    solve(src[0], src[1], maze.size(),
          maze[0].size(), dir,
          maze, temp, ans);

    return ans;
}

// Driver Code
int main()
{

    // Initializing the variables
    vector > maze = {
        { 1, 0, 0, 1, 0, 0, 1, 1 },
        { 1, 1, 1, 0, 0, 0, 1, 0 },
        { 1, 0, 1, 1, 1, 1, 1, 0 },
        { 0, 0, 0, 0, 1, 0, 0, 0 },
        { 1, 0, 1, 0, 1, 0, 0, 1 },
        { 0, 1, 1, 1, 1, 0, 0, 1 },
        { 0, 1, 0, 0, 1, 1, 1, 1 },
        { 1, 1, 0, 0, 0, 0, 0, 1 },
    };
    vector src = { 4, 2 };

    // Function Call
    vector paths
        = possiblePaths(src, maze);

    // Print the result
    if (paths.size() == 0) {
        cout << "No Possible Paths";
        return 0;
    }

    for (int i = 0; i < paths.size(); i++)
        cout << paths[i] << endl;

    return 0;
}


Java
// Java program for the above approach
import java.util.*;

public class GFG {

  static class direction {
    int x, y;
    char c;
    direction(int x, int y, char c)
    {
      this.c = c;
      this.x = x;
      this.y = y;
    }
  };

  // Function to check if we reached on
  // of the entry/exit (corner) point.
  static boolean isCorner(int i, int j, int M, int N)
  {
    if ((i == 0 && j == 0) || (i == 0 && j == N - 1)
        || (i == M - 1 && j == N - 1)
        || (i == M - 1 && j == 0))
      return true;

    return false;
  }

  // Function to check if the index is
  // within the matrix boundary.
  static boolean isValid(int i, int j, int M, int N)
  {
    if (i < 0 || i >= M || j < 0 || j >= N)
      return false;
    return true;
  }

  // Recursive helper function
  static void solve(int i, int j, int M, int N,
                    direction dir[], int[][] maze,
                    String t, ArrayList ans)
  {

    // If any corner is reached push the
    // string t into ans and return
    if (isCorner(i, j, M, N)) {
      ans.add(t);
      return;
    }

    // For all the four directions
    for (int k = 0; k < 4; k++) {

      // The new ith index
      int x = i + dir[k].x;

      // The new jth index
      int y = j + dir[k].y;

      // The direction R/L/U/D
      char c = dir[k].c;

      // If the new cell is within the
      // matrix boundary and it is not
      // previously visited in same path
      if (isValid(x, y, M, N) && maze[x][y] == 1) {

        // Mark the new cell as visited
        maze[x][y] = 0;

        // Store the direction
        t += c;

        // Recur
        solve(x, y, M, N, dir, maze, t, ans);

        // Backtrack to explore
        // other paths
        t = t.substring(0, t.length() - 1);
        maze[x][y] = 1;
      }
    }
    return;
  }

  // Function to find all possible paths
  static ArrayList possiblePaths(int[] src,
                                         int[][] maze)
  {
    // Create a direction array for all
    // the four directions
    direction[] dir = { new direction(-1, 0, 'U'),
                       new direction(0, 1, 'R'),
                       new direction(1, 0, 'D'),
                       new direction(0, -1, 'L') };

    // Stores the result
    String temp = "";
    ArrayList ans = new ArrayList<>();

    solve(src[0], src[1], maze.length, maze[0].length,
          dir, maze, temp, ans);

    return ans;
  }

  // Driver Code
  public static void main(String[] args)
  {

    // Initializing the variables
    int[][] maze = {
      { 1, 0, 0, 1, 0, 0, 1, 1 },
      { 1, 1, 1, 0, 0, 0, 1, 0 },
      { 1, 0, 1, 1, 1, 1, 1, 0 },
      { 0, 0, 0, 0, 1, 0, 0, 0 },
      { 1, 0, 1, 0, 1, 0, 0, 1 },
      { 0, 1, 1, 1, 1, 0, 0, 1 },
      { 0, 1, 0, 0, 1, 1, 1, 1 },
      { 1, 1, 0, 0, 0, 0, 0, 1 },
    };
    int[] src = { 4, 2 };

    // Function Call
    ArrayList paths = possiblePaths(src, maze);

    // Print the result
    if (paths.size() == 0) {
      System.out.println("No Possible Paths");
      return;
    }

    for (int i = 0; i < paths.size(); i++) {
      System.out.println(paths.get(i));
    }
  }
}
// This code is contributed by Karandeep1234


Python3
# Python program for the above approach

# Function to check if we reached on
# of the entry/exit (corner) point.
def isCorner(i, j, M, N):
    if((i == 0 and j == 0) or (i == 0 and j == N-1) or (i == M-1 and j == N-1) or (i == M-1 and j == 0)):
        return True
    return False

# Function to check if the index is
# within the matrix boundary.
def isValid(i, j, M, N):
    if(i < 0 or i >= M or j < 0 or j >= N):
        return False
    return True

# Recursive helper function
def solve(i, j, M, N, Dir, maze, t, ans):

    # If any corner is reached push the
    # string t into ans and return
    if(isCorner(i, j, M, N)):
        ans.append(t)
        return

    # For all the four directions
    for k in range(4):

      # The new ith index
        x = i + Dir[k][0]

        # The new jth index
        y = j + Dir[k][1]

        # The direction R/L/U/D
        c = Dir[k][2]

         # If the new cell is within the
        # matrix boundary and it is not
        # previously visited in same path
        if(isValid(x, y, M, N) and maze[x][y] == 1):

          # mark the new cell visited
            maze[x][y] = 0

            # Store the direction
            t += c
            solve(x, y, M, N, Dir, maze, t, ans)

             # Backtrack to explore
            # other paths
            t = t[: len(t)-1]
            maze[x][y] = 1
    return

# Function to find all possible paths
def possiblePaths(src, maze):

     # Create a direction  array for all
    # the four directions
    Dir = [[-1, 0, 'U'], [0, 1, 'R'], [1, 0, 'D'], [0, -1, 'L']]

    # stores the result
    temp = ""
    ans = []
    solve(src[0], src[1], len(maze), len(maze[0]), Dir, maze, temp, ans)
    return ans

# Driver code

# Initialise variable
maze = [[1, 0, 0, 1, 0, 0, 1, 1],
        [1, 1, 1, 0, 0, 0, 1, 0],
        [1, 0, 1, 1, 1, 1, 1, 0],
        [0, 0, 0, 0, 1, 0, 0, 0],
        [1, 0, 1, 0, 1, 0, 0, 1],
        [0, 1, 1, 1, 1, 0, 0, 1],
        [0, 1, 0, 0, 1, 1, 1, 1],
        [1, 1, 0, 0, 0, 0, 0, 1]]
src = [4, 2]

# function call
paths = possiblePaths(src, maze)

# Print the result
if(len(paths) == 0):
    print("No Possible Paths")
else:
    for i in paths:
        print(i)

# This code is contributed by parthmanchanda81


Javascript



输出:
DRRUUURRUUR
DRRUUULLULLU
DRRDRRRD
DLDDL

时间复杂度: O(3 (M*N) )
辅助空间: O(3 (M*N) )
